gabion mats/Reno mattress/gabion box

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
YND
Model Number:
YND-GB-03
Material:
Low-Carbon Iron Wire, Low-Carbon Iron Wire
Type:
Gabion box
Application:
Gabions
Hole Shape:
Hexagonal
Aperture:
6*8cm 8*10cm 12*15cm
Wire Gauge:
2-4mm
Surface Treatment:
PVC coated or galvanized

Gabion Mattress:

material:heavy galvanized wire, pvc coated wire, galfan wire

mesh wire diameter. 2-4mm

lacing wire diameter:2.2mm
mesh hole:6*8cm 8*10cm 10*12cm 12*15cm
sizes: 2m x 1m x 0.17m, 3m x 1m x 0.25m, 4m x 1m x0.3m



The introduction of the gabion mats



The Gabion mats is a structure made of hexagonal double twisted wire mesh. Gabion mats are filled with stones at the project

site to form flexible and permeable, monolithic structures such as river bank protection and channel linings for erosion control.

The steel wire used to manufacture the mattress is heavily zinc-coated soft temper steel.In order to reinforce the structure,

all mesh panel edges are selvedge with a wire having a greater diameter. Reno mattresses are divided into uniformly partitioned

cells by internal diaphragms .





Gabion Mats Weaving and characteristics:

Reverse Twisted,Galvanized after weaving or galvanized before weaving,it is divided into Electroplate Galvanized,

HotDipped,PVC Coated,Stainless steel etc.


The characteristics of the gabion mats:



  • Gabion mat strength lies in their double twisted hexagonal mesh of steel wire which is reinforced by selvedges of
  • heavier wire running along the edges.
  • The base section is divided into compartments to restrict the movement of stone and strengthen the structure.
  • The lid is supplied as a separate panel.
  • The wire will not unravel even when cut.
  • Assembly is easy, requiring no specialized labor and nearby rock is used for fill.
  • Free drainage and 30-35% voids allow vegetation to grow.

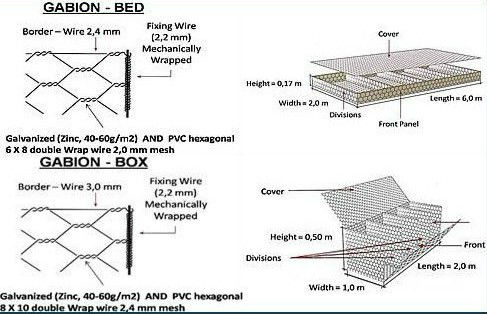

The details of the gabion box





The specification of the gabion mats,other is also available as your request





Mesh

sizes

Numbers of

 diaphragm

Approximate dimensions and volumes

Tolerance

Colour

code

Wire diameter(mm)

Length(m)

Width(m)

Depth(m)

Capacity(m³)



60*80



80*100



80*120



100*120





2

3.00

2.00

0.17

0.90



Length

±5%



Width

±5%



Depth

±5%

Blue



Red



Yellow



Green



White



Black

Heavily galvanized or galfan

 coated wire 2.00-3.00

Or PVC coated on heavily

galvanized or galfan coated

wire 2.0/3.0, 2.2/3.2, 2.4/3.4,

2.7/3.7,  2.0/4.0

2

3.00

2.00

0.23

1.35

2

3.00

2.00

0.30

1.80

2

3.00

2.00

0.50

3.00

3

4.00

2.00

0.17

1.20

3

4.00

2.00

1.23

1.80

3

4.00

2.00

0.30

2.40

3

4.00

2.00

0.50

4.00

4

5.00

2.00

0.17

1.50

4

5.00

2.00

0.23

2.25

4

5.00

2.00

0.30

3.00







The advantage of the gabion mats :



  • Gabion mat strength lies in their double twisted hexagonal mesh of steel wire which is reinforced by selvedges of heavier
  • wire running along the edges.
  • The base section is divided into compartments to restrict the movement of stone and strengthen the structure.
  • The lid is supplied as a separate panel.
  • The wire will not unravel even when cut.
  • Assembly is easy, requiring no specialized labor and nearby rock is used for fill.
  • Free drainage and 30-35% voids allow vegetation to grow.

The production

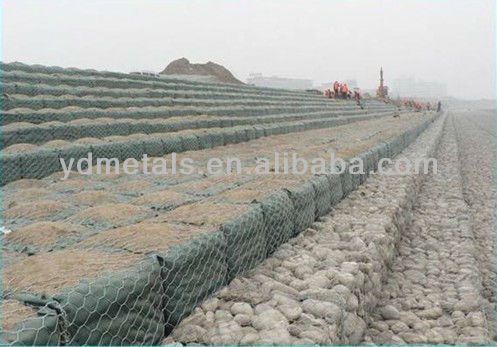

Gabion Mattress applications:

Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
